If you own a John Deere X700 series tractor (X720, X728, X730, X738, X739, X740, X748, X758), you already know how expensive replacement parts can get. One of the simplest parts to overlook — and one of the most important — is the dust plug for your hydraulic quick-connect couplers.
Genuine John Deere dust plugs cost $5-$15 each and they’re easy to lose. I got sick of buying them, so I built a free parametric 3D printable dust plug generator. You can print dozens for the cost of a single genuine plug.
Why Dust Plugs Matter
Your tractor’s hydraulic system operates at 150-200 bar. Even tiny dirt particles or moisture inside a coupler can score cylinder bores, damage seals, and cause expensive leaks. When you disconnect an implement, those open couplers are exposed to:
- Dust and dirt from mowing and fieldwork
- Rain and wash-down water
- Mud, grass clippings, and debris
A simple dust plug stops all of that. It’s cheap insurance for a hydraulic system that costs thousands to repair.
What I Built
I created a parametric dust plug generator that runs in your browser. No CAD skills needed. You adjust a few sliders and download an STL file ready for 3D printing.

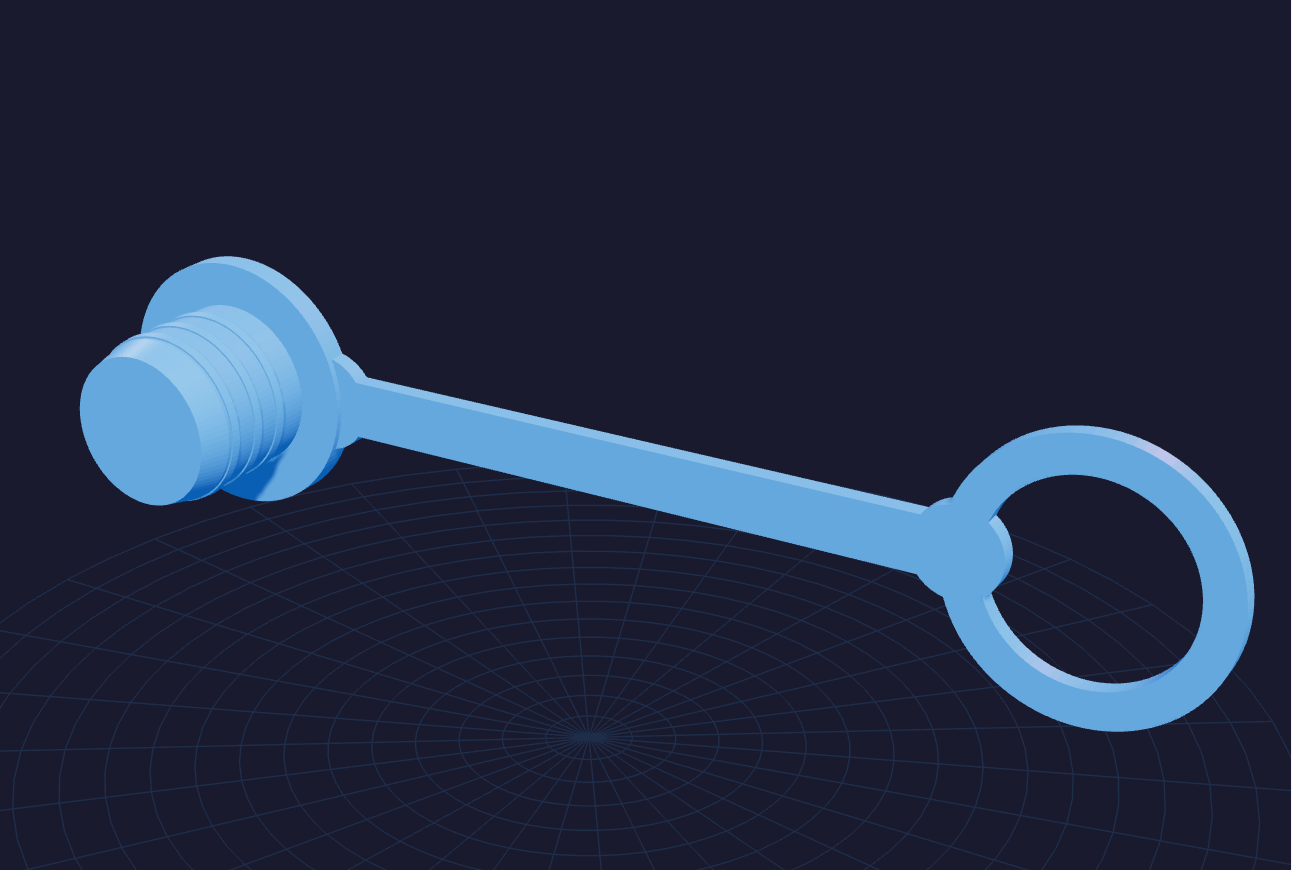

The design features:
- Flexible retaining ribs — grips the coupler bore securely, won’t fall out from vibration
- Tapered lead-in — easy to insert even with greasy fingers
- Integrated tether strap and ring — attaches to the hose so you never lose it
- Build-plate flat orientation — zero supports required, prints perfectly every time
- ISO 5675 standard fit — works with all agricultural quick-couplers, not just John Deere
How to Print Them
These are designed for TPU 95A flexible filament. TPU is the right material because:
- It flexes to create a tight seal in the coupler bore
- It won’t crack or break when removed cold
- It’s chemical-resistant against hydraulic oil
- It prints cleanly with no supports
Print settings: 0.20mm layer height, 4 walls, 25-40% infill. Each plug uses about 3-4 grams of filament — roughly 10-15 cents each. A 1kg spool of TPU ($25-35) prints about 250-300 plugs.
Generate Your Own — Free
The generator is completely free. No sign-up, no limits. You can customise every dimension if your couplers are a different size.
Works in your browser — nothing to install. Measure your coupler, adjust the sliders, download the STL, and print.
Compatible Tractor Models
These dust plugs fit all John Deere X700 series tractors with standard ISO 5675 hydraulic quick-couplers:
- John Deere X720
- John Deere X728
- John Deere X730
- John Deere X738
- John Deere X739
- John Deere X740
- John Deere X748
- John Deere X758
They also fit most other compact and utility tractors that use ISO 5675 couplers — Kubota, Massey Ferguson, New Holland, Case IH, and many more.
Always measure your coupler bore before printing. The generator lets you adjust the plug diameter in 0.05mm increments for a perfect fit.
